8. Tutorial: Create iML1515 TGECKO model¶
The f2xba modeling framework has been developed for the purpose of generating a variety of extended metabolic models using a consistent framework. It facilitates the sharing of configuration data and provides consistent support for model optimization and results analysis. In this context, the generation of a TGECKO model, a thermodynamics-constrained GECKO model, can be achieved with minimal effort by reusing the XBA, ECM, and TFA configuration files and workflows established in the previous tutorials.
Peter Schubert, Heinrich-Heine University Duesseldorf, Institute for Computational Cell Biology (Prof. Dr. M. Lercher), January, 2025
Step 1: Initial setup¶
[1]:
# Required imports and model names
import os
import re
import time
from collections import defaultdict
import numpy as np
import pandas as pd
import cobra
from f2xba import XbaModel, TfaModel, EcModel
from f2xba import EcmOptimization, EcmResults
from f2xba.utils.mapping_utils import load_parameter_file, write_parameter_file
fba_model = 'iML1515'
baseline_model = 'iML1515_predicted_fit_GECKO'
target_model = 'iML1515_TGECKO'
reference_cond = 'Glucose'
# Create media conditions
media_grs = {'Acetate': ['ac', 0.29], 'Glycerol': ['glyc', 0.47], 'Fructose': ['fru', 0.54],
'L-Malate': ['mal__L', 0.55], 'Glucose': ['glc__D', 0.66], 'Glucose 6-Phosphate': ['g6p', 0.78]}
base_medium = ['ca2', 'cbl1', 'cl', 'co2', 'cobalt2', 'cu2', 'fe2', 'fe3', 'h2o', 'h', 'k', 'mg2',
'mn2', 'mobd', 'na1', 'nh4', 'ni2', 'o2', 'pi', 'sel', 'slnt', 'so4', 'tungs', 'zn2']
conditions = {}
exp_grs = {}
for cond, (carbon_sid, exp_gr )in media_grs.items():
conditions[cond] = {f'EX_{sidx}_e': 1000.0 for sidx in base_medium}
conditions[cond][f'EX_{carbon_sid}_e'] = 1000.0
exp_grs[cond] = exp_gr
print(f'{len(conditions)} minimal media conditions created for simulation')
# Load proteomics
fname = os.path.join('data', 'Ecoli_Schmidt_proteomics.xlsx')
with pd.ExcelFile(fname) as xlsx:
df_mpmf = pd.read_excel(xlsx, sheet_name='proteomics', index_col=0)
print(f'{len(df_mpmf)} records of proteomics loaded from {fname}')
min_confidence_level = 43.0
df_mpmf = df_mpmf[df_mpmf['confidence'] > min_confidence_level]
print(f'{len(df_mpmf)} records with confidence level above {min_confidence_level}')
# Metabolite concentrations to be fixed with a margin (Buckstein, 2008)
nt_concs_µmol_per_l = {
'atp_c': 3560, 'adp_c': 116, 'datp_c': 181, 'ctp_c': 325, 'dctp_c': 184,
'gtp_c': 1660, 'gdp_c': 203, 'dgtp_c': 92, 'utp_c': 667, 'udp_c': 54,
'dttp_c': 256, 'ppgpp_c': 113, 'accoa_c': 1390}
factor = 2.0
metabolite_molar_concs = {sid: (µmol_per_l * 1e-6/factor, µmol_per_l*1e-6*factor)
for sid, µmol_per_l in nt_concs_µmol_per_l.items()}
6 minimal media conditions created for simulation
2347 records of proteomics loaded from data/Ecoli_Schmidt_proteomics.xlsx
2232 records with confidence level above 43.0
Step 2: Create TGECKO model¶
The generation of a TGECKO model is initiated with an XbaModel that has been configured with the XBA configuration file, which was previously utilized for the GECKO model. Subsequently, thermodynamics constraints are introduced using the TfaModel. Finally, the ECM configuration data is applied.
[2]:
# Create new TGECKO model
xba_model = XbaModel(os.path.join('SBML_models', f'{fba_model}.xml'))
xba_model.configure(os.path.join('data', f'{baseline_model}_xba_parameters.xlsx'))
tfa_model = TfaModel(xba_model)
tfa_model.configure(os.path.join('data', f'{fba_model}_TFA_tfa_parameters.xlsx'))
ec_model = EcModel(xba_model)
ec_model.configure(os.path.join('data', f'{baseline_model}_ecm_parameters.xlsx'))
ec_model.export(os.path.join('SBML_models', f'{target_model}.xml'))
loading: SBML_models/iML1515.xml (last modified: Thu Dec 5 10:03:46 2024)
3 table(s) with parameters loaded from data/iML1515_predicted_fit_GECKO_xba_parameters.xlsx (Thu Nov 20 19:02:51 2025)
22 gene product(s) removed from reactions (1494 gene products remaining)
2 attributes on reaction instances updated
extracting UniProt protein data from data/uniprot_organism_83333.tsv
1494 proteins created
1203 enzymes added with default stoichiometry
1 table(s) with parameters loaded from data/iML1515_enzyme_composition_updated.xlsx (Thu Nov 20 18:52:47 2025)
1203 enzyme compositions updated from data/iML1515_enzyme_composition_updated.xlsx
2221 reactions catalyzed by 1203 enzymes
default kcat values configured for ['metabolic', 'transporter'] reactions
1 table(s) with parameters loaded from data/iML1515_predicted_fit_GECKO_kcats.xlsx (Thu Nov 20 19:02:51 2025)
5357 kcat values updated from data/iML1515_predicted_fit_GECKO_kcats.xlsx
0 enzymes removed due to missing kcat values
1877 constraints (+0); 2712 variables (+0); 1494 genes (-22); 5 parameters (+0)
>>> BASELINE XBA model configured!
5 table(s) with parameters loaded from data/iML1515_TFA_tfa_parameters.xlsx (Fri Nov 21 11:16:34 2025)
16 thermo data attributes updated
938 metabolites with TD data covering 1546 model species; (331 not supported)
1899 reactions supported by TD data; (476 not supported)
7221 constraints to add
7221 constraint ids added to the model (9098 total constraints)
3668 ∆rG'/∆rG'˚ variables to add
3668 variable ids added to the model (6380 total variables)
2407 forward/reverse use variables to add
2407 variable ids added to the model (8787 total variables)
1525 log concentration variables to add
1525 variable ids added to the model (10312 total variables)
1834 TD reactions split in forward/reverse, 0 opened reverse direction
2407 fwd/rev reactions to couple with flux direction
2407 attributes on reaction instances updated
2 RHS variables to add
2 variable ids added to the model (10887 total variables)
3682 parameters
3 ∆Gr'˚ variables need relaxation.
3 attributes on parameter instances updated
1525 species (929 metabolites) with TD data from total 1877 (1169)
1834 metabolic/transporter reactions with TD data from total 2375
9098 constraints (+7221); 10887 variables (+8175); 1494 genes (-22); 3682 parameters (+3677)
1 table(s) with parameters loaded from data/iML1515_predicted_fit_GECKO_ecm_parameters.xlsx (Thu Nov 20 19:02:51 2025)
modeled protein fraction of total protein mass 0.3733 g/g
1494 protein constraints to add
1494 constraint ids added to the model (10592 total constraints)
protein constraint: 212.80 mg/gDW - modeled protein
1 constraint ids added to the model (10593 total constraints)
1495 protein variables to add
1495 variable ids added to the model (14968 total variables)
10593 constraints (+8716); 14968 variables (+12256); 1494 genes (-22); 3688 parameters (+3683)
model exported to SBML format: SBML_models/iML1515_TGECKO.xml
[2]:
True
Step 3. Load and optimize TGECKO model (COBRApy)¶
[3]:
# Load TGECKO model using cobrapy
start = time.time()
fname = os.path.join('SBML_models', f'{target_model}.xml')
ecm = cobra.io.read_sbml_model(fname)
total_protein = ecm.reactions.get_by_id('V_PC_total').upper_bound
eo = EcmOptimization(fname, ecm)
sigma = eo.avg_enz_saturation
print(f'total modeled protein: {total_protein:.2f} mg/gDW, enzyme saturation level: {sigma}')
# Set nucleotide concentrations (optional)
orig_concs = eo.set_tfa_metab_concentrations(metabolite_molar_concs)
print(f'{len(orig_concs)} metabolite concentrations constrained')
print(f'Duration: {time.time()-start:.1f} s')
Set parameter Username
Set parameter LicenseID to value 2731209
Academic license - for non-commercial use only - expires 2026-10-31
SBML model loaded by sbmlxdf: SBML_models/iML1515_TGECKO.xml (Fri Nov 21 11:40:58 2025)
Thermodynamic use variables (V_FU_xxx and V_RU_xxx) as binary
Thermodynamic constraints (C_F[FR]C_xxx, C_G[FR]C_xxx, C_SU_xxx) ≤ 0
1834 TD reaction constraints
total modeled protein: 212.80 mg/gDW, enzyme saturation level: 0.5
13 metabolite concentrations constrained
Duration: 31.3 s
[4]:
# Optimize model using cobrapy and analyze results
start = time.time()
pred_results = {}
for cond, medium in conditions.items():
with ecm as model:
model.medium = medium
solution = model.optimize()
if solution.status == 'optimal':
gr = solution.objective_value
pred_results[cond] = solution
print(f'{cond:25s}: pred gr: {gr:.3f} h-1 vs. exp {exp_grs[cond]:.3f}, '
f'diff: {gr - exp_grs[cond]:6.3f}')
else:
print(f'{cond} ended with status {solution.status}')
er = EcmResults(eo, pred_results, df_mpmf)
df_fluxes = er.collect_fluxes()
df_net_fluxes = er.collect_fluxes(net=True)
df_proteins = er.collect_protein_results()

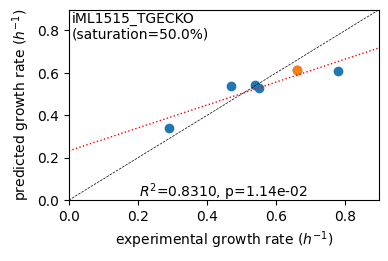

er.plot_grs(exp_grs, highlight=reference_cond)
print(f'Protein mass fractions:')
er.report_proteomics_correlation(scale='lin')
er.report_proteomics_correlation(scale='log')
print()

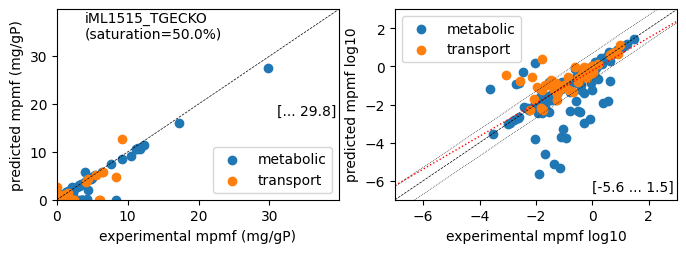

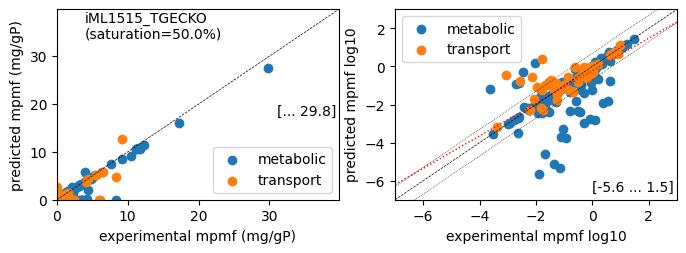

er.plot_proteins(reference_cond)
df_species_conc = er.collect_species_conc()
er.save_to_escher(df_net_fluxes[reference_cond], os.path.join('escher', target_model))
er.save_to_escher(df_species_conc[reference_cond], os.path.join('escher', target_model))
print(f'Duration: {time.time()-start:.1f} s')
Acetate : pred gr: 0.341 h-1 vs. exp 0.290, diff: 0.051
Glycerol : pred gr: 0.540 h-1 vs. exp 0.470, diff: 0.070
Fructose : pred gr: 0.544 h-1 vs. exp 0.540, diff: 0.004
L-Malate : pred gr: 0.526 h-1 vs. exp 0.550, diff: -0.024
Glucose : pred gr: 0.613 h-1 vs. exp 0.660, diff: -0.047
Glucose 6-Phosphate : pred gr: 0.608 h-1 vs. exp 0.780, diff: -0.172
Protein mass fractions:
Acetate : r² = 0.2511, p = 1.25e-64 ( 999 proteins lin scale)
Glycerol : r² = 0.2292, p = 2.25e-58 ( 999 proteins lin scale)
Fructose : r² = 0.6175, p = 2.70e-210 ( 999 proteins lin scale)
Glucose : r² = 0.8698, p = 0.00e+00 ( 999 proteins lin scale)
Acetate : r² = 0.5130, p = 4.74e-50 ( 310 proteins log scale)
Glycerol : r² = 0.4923, p = 5.47e-48 ( 315 proteins log scale)
Fructose : r² = 0.5382, p = 6.21e-53 ( 306 proteins log scale)
Glucose : r² = 0.5659, p = 1.16e-58 ( 315 proteins log scale)
1 file(s) exported for "Load reaction data" into Escher maps
1 file(s) exported for "Load metabolite data" into Escher maps
Duration: 22.3 s
[5]:
# selected species concentrations
df_species_conc.loc[list(metabolite_molar_concs)].head()
[5]:
| name | rank | mean mmol_per_l | stdev | Acetate | Glycerol | Fructose | L-Malate | Glucose | Glucose 6-Phosphate | |
|---|---|---|---|---|---|---|---|---|---|---|
| sid | ||||||||||
| atp_c | ATP C10H12N5O13P3 | 1240 | 1.7800 | 0.000000e+00 | 1.780 | 1.780 | 1.7800 | 1.780 | 1.780 | 1.7800 |
| adp_c | ADP C10H12N5O10P2 | 1270 | 0.2320 | 0.000000e+00 | 0.232 | 0.232 | 0.2320 | 0.232 | 0.232 | 0.2320 |
| datp_c | DATP C10H12N5O12P3 | 1269 | 0.2715 | 1.402020e-01 | 0.362 | 0.362 | 0.0905 | 0.362 | 0.362 | 0.0905 |
| ctp_c | CTP C9H12N3O14P3 | 1248 | 0.6500 | 0.000000e+00 | 0.650 | 0.650 | 0.6500 | 0.650 | 0.650 | 0.6500 |
| dctp_c | DCTP C9H12N3O13P3 | 1284 | 0.0920 | 1.520235e-17 | 0.092 | 0.092 | 0.0920 | 0.092 | 0.092 | 0.0920 |
(Optional) Track progress¶
[6]:
import scipy
import numpy as np
number = 8
xy = np.array([[df_mpmf.at[gene, reference_cond], df_proteins.at[gene, reference_cond]]
for gene in df_proteins.index if gene in df_mpmf.index])
log10_x, log10_y = er.get_log10_xy(xy)
lin_pearson_r, _ = scipy.stats.pearsonr(xy[:, 0], xy[:, 1])
log_pearson_r, _ = scipy.stats.pearsonr(log10_x, log10_y)
predictions = load_parameter_file('protein_predictions.xlsx')
data = [[number, target_model, lin_pearson_r**2,log_pearson_r**2, len(xy), len(log10_x)]]
cols = ['No', 'model', 'lin r2', 'log r2', 'lin proteins', 'log proteins']
df = pd.DataFrame(data, columns=cols).set_index('No')
if number in predictions[reference_cond].index:
predictions[reference_cond].drop(index=number, inplace=True)
predictions[reference_cond
] = pd.concat((predictions[reference_cond], df)).sort_index()
write_parameter_file('protein_predictions.xlsx', predictions)
predictions[reference_cond]
1 table(s) with parameters loaded from protein_predictions.xlsx (Thu Nov 20 19:10:13 2025)
1 table(s) with parameters written to protein_predictions.xlsx
[6]:
| model | lin r2 | log r2 | lin proteins | log proteins | |
|---|---|---|---|---|---|
| No | |||||
| 1 | iML1515_default_GECKO | 0.033244 | 0.190225 | 1018 | 299 |
| 2 | iML1515_modified_GECKO | 0.135981 | 0.201613 | 999 | 322 |
| 3 | iML1515_predicted_GECKO | 0.078803 | 0.268769 | 999 | 308 |
| 4 | iML1515_manual_adjust_GECKO | 0.205413 | 0.333470 | 999 | 308 |
| 5 | iML1515_predicted_fit_GECKO | 0.869850 | 0.549757 | 999 | 313 |
| 6 | iML1515_RBA | 0.852647 | 0.490353 | 1112 | 425 |
| 8 | iML1515_TGECKO | 0.869849 | 0.565869 | 999 | 315 |
(Alternative) gurobipy - model optimization¶
[7]:
# Load TGECKO model using gurobipy
start = time.time()
fname = os.path.join('SBML_models', f'{target_model}.xml')
eo = EcmOptimization(fname)
# Set nucleotide concentrations (optional)
orig_concs = eo.set_tfa_metab_concentrations(metabolite_molar_concs)
print(f'{len(orig_concs)} metabolite concentrations constrained')
print(f'Duration: {time.time()-start:.1f} s')
SBML model loaded by sbmlxdf: SBML_models/iML1515_TGECKO.xml (Fri Nov 21 11:40:58 2025)
MILP Model of iML1515_TFA_GECKO
14968 variables, 10593 constraints, 53961 non-zero matrix coefficients
1834 TD reaction constraints
13 metabolite concentrations constrained
Duration: 15.9 s
[8]:
# Optimize model using gurobipy and analyze results
start = time.time()
pred_results = {}
for cond, medium in conditions.items():
eo.medium = medium
solution = eo.optimize()
if solution.status == 'optimal':
pred_results[cond] = solution
gr = solution.objective_value
print(f'{cond:25s}: pred gr: {gr:.3f} h-1 vs. exp {exp_grs[cond]:.3f}, diff: {gr - exp_grs[cond]:6.3f}')
else:
print(f'{cond} ended with status {solution.status}')
er = EcmResults(eo, pred_results, df_mpmf)
df_fluxes = er.collect_fluxes()
df_net_fluxes = er.collect_fluxes(net=True)
df_proteins = er.collect_protein_results()
er.plot_grs(exp_grs, highlight=reference_cond)
print(f'Protein mass fractions:')
er.report_proteomics_correlation(scale='lin')
er.report_proteomics_correlation(scale='log')
print()
er.plot_proteins(reference_cond)
df_species_conc = er.collect_species_conc()
er.save_to_escher(df_net_fluxes[reference_cond], os.path.join('escher', target_model))
er.save_to_escher(df_species_conc[reference_cond], os.path.join('escher', target_model))
print(f'Duration: {time.time()-start:.1f} s')
Acetate : pred gr: 0.341 h-1 vs. exp 0.290, diff: 0.051
Glycerol : pred gr: 0.540 h-1 vs. exp 0.470, diff: 0.070
Fructose : pred gr: 0.544 h-1 vs. exp 0.540, diff: 0.004
L-Malate : pred gr: 0.526 h-1 vs. exp 0.550, diff: -0.024
Glucose : pred gr: 0.613 h-1 vs. exp 0.660, diff: -0.047
Glucose 6-Phosphate : pred gr: 0.608 h-1 vs. exp 0.780, diff: -0.172
Protein mass fractions:
Acetate : r² = 0.2511, p = 1.25e-64 ( 999 proteins lin scale)
Glycerol : r² = 0.2292, p = 2.25e-58 ( 999 proteins lin scale)
Fructose : r² = 0.6175, p = 2.70e-210 ( 999 proteins lin scale)
Glucose : r² = 0.8699, p = 0.00e+00 ( 999 proteins lin scale)
Acetate : r² = 0.4610, p = 6.54e-44 ( 315 proteins log scale)
Glycerol : r² = 0.4923, p = 5.47e-48 ( 315 proteins log scale)
Fructose : r² = 0.5382, p = 6.21e-53 ( 306 proteins log scale)
Glucose : r² = 0.5621, p = 1.98e-58 ( 317 proteins log scale)
1 file(s) exported for "Load reaction data" into Escher maps
1 file(s) exported for "Load metabolite data" into Escher maps
Duration: 6.2 s
[9]:
df_species_conc.loc[list(metabolite_molar_concs)].head()
[9]:
| name | rank | mean mmol_per_l | stdev | Acetate | Glycerol | Fructose | L-Malate | Glucose | Glucose 6-Phosphate | |
|---|---|---|---|---|---|---|---|---|---|---|
| sid | ||||||||||
| atp_c | ATP C10H12N5O13P3 | 368 | 3.5600 | 2.757564e+00 | 7.1200 | 7.1200 | 1.7800 | 1.7800 | 1.7800 | 1.7800 |
| adp_c | ADP C10H12N5O10P2 | 445 | 0.1740 | 8.985321e-02 | 0.0580 | 0.0580 | 0.2320 | 0.2320 | 0.2320 | 0.2320 |
| datp_c | DATP C10H12N5O12P3 | 464 | 0.0905 | 1.520235e-17 | 0.0905 | 0.0905 | 0.0905 | 0.0905 | 0.0905 | 0.0905 |
| ctp_c | CTP C9H12N3O14P3 | 446 | 0.1625 | 3.040471e-17 | 0.1625 | 0.1625 | 0.1625 | 0.1625 | 0.1625 | 0.1625 |
| dctp_c | DCTP C9H12N3O13P3 | 463 | 0.0920 | 1.520235e-17 | 0.0920 | 0.0920 | 0.0920 | 0.0920 | 0.0920 | 0.0920 |
[10]:
df_species_conc.loc[['ac_c', 'ac_p']].head()
[10]:
| name | rank | mean mmol_per_l | stdev | Acetate | Glycerol | Fructose | L-Malate | Glucose | Glucose 6-Phosphate | |
|---|---|---|---|---|---|---|---|---|---|---|
| sid | ||||||||||
| ac_c | Acetate | 516 | 0.015653 | 0.038317 | 0.093868 | 0.00001 | 0.00001 | 0.00001 | 0.00001 | 0.00001 |
| ac_p | Acetate | 491 | 0.032806 | 0.080332 | 0.196783 | 0.00001 | 0.00001 | 0.00001 | 0.00001 | 0.00001 |
[ ]:
